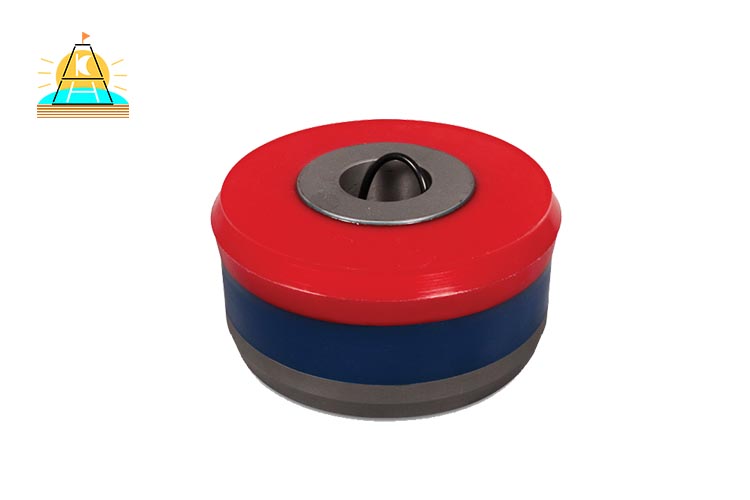

Bull Nose Style Urethane Piston
KEHUA Bull Nose Style Urethane Piston
Bull Nose Style urethane pistons designed to meet pressures of 7500 psi and temperature up to 220 degrees F, The solid lip “Bullnose” designed piston head is composed of two different durometer urethane compounds bonded together for superior performance.
Parameter
Bull Nose Style Urethane Piston Parameter
- 100% interchangeable with pumps of various brands
- Rated for pressures up to 7500 psiand 320°F（160℃）
- Resistant to high pressure, abrasion, heat and extrusion
- Multi-durometer bonded urethane allows for longer piston life
- “Bull nose” lip design seals for less ‘squirt’ which reduces flush system contamination
- Available in standard sizes 4 – 7”
Applicable Model
Bull Nose Style Urethane Piston Applicable Model
| Bomco | F-500 | F-800 | F-1000 | F-1300 | F-1600 | F-1600HL | |
| F-350 | F-500 | F-650 | F-800 | F-1000 | FD-1000 | FB-1300 | |
| FB-1600 | FA-1600 | FA-1300 | FC-1600 | FD-1600 | FC-2200D-300/500 | D-175 | |
| HONGHUA | HHF-500 | HHF-800 | HHF-1000 | HHF-1300 | HHF-1600 | HHF-1600HL | HHF-2200HL |
| Emsco | D-225 | D-375 | D-500 | D-550 | DA-500 | DB-500 | D-700 |
| DA-70 | DB-700 | DC-700 | DA-850 | DB-850 | DC-850 | D-1000 | |
| DB-1000 | DC-1000 | D-1000-A | D-1350 | D-1650 | |||
| National | 7-P-50 | 8-P-80 | 9-P-100 | 10-P-130 | 12-P-160 | 14-P-220 | JWS-165-L |
| JWS-340 | JWS-400 | C-250 | C-350 | K-380 | K-500-A | G-700 | |
| K-700 | N-1000 | N-1300 | N-1600 | ||||
| Gardner Denver | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | FK-FXK | FY-FXD |
| FD-FXX | FG-GXG | FG-FXG | KG-KXG | FQ-FXQ | FF-FXF | FF-FXP | |
| TGE | TGF | TGH | PAH-275 | ||||
| Oilwell | 350-PT | A-650P-T | A-850-PT | A-1100-PT | A-1400-PT | A-1700-PT | HD-1400-PT |
| HD-1700-PT | 612-P | 212-P | 214-P | 218-P | 700-P | 816-P | |
| 818-P | 1000-P | ||||||
| Ideco | T-500 | T-800 | T-1000 | T-1300 | T-1600 | MM-450 | MM-500-F |
| MM-600-A | MM-700-F | MM-1000 | |||||
| Russian Pumps | UNBT-950 | UNB-600 | 8T-650 | UNBT650 | NBT600 | UNB1180 | UNB1180L |
| LS National Mud Pumps | 3NB-500C | 3NB1000C | 3NB1300C | 3NB1600 | |||
| Wirth Mud Pump | TPK1000 | TPK1600 | TPK2000 | ||||
| WEATHERFORD/Ellis Williams | MP-5 | MP-8 | MP-10 | MP-13 | MP-16 | E-447 | E-2200 |
| W446 | W440 | ||||||
| Drillmec | 7TS-600 | 8T-800 | 9T1000 | 10T-1300 | 12T1600 | 14T-2200 | 10D2C |
| 8D1S | |||||||
| Upetrom | 3PN-1000 | 3PN-1600 | 3PN-1300 | 3PN-2000 | |||
| OPI | 350-D | 350-GD | 500-DC | 700-HDL | 1000-HDL | ||
| Lewco/Ewco | W-250-C | WH440 | W446 | W600 | WH600 | WH770 | W1100 |
| WH1312 | W1612 | W1712 | W2000 | W2214 | W2215 | ||
| American Block | K800 | K1000 | K1300 | K1600 | K2200 | ||
| Loadmaster | LSF-500 | LSF-800 | LSF-1000 | LSF-1300 | LSF-1600 | ||
| Soilmec | 7T500 | 7T508 | 8T650 | ||||
| Dragon | 440HP | 660HP | |||||
| GASO/Wheatly | 1550 | 1560 | 1563 | 1654 | 1742 | 1753 | 1874 |
| 1849 | 1860 | 2652 | |||||
| Great American | GA-550 | GA-750 | |||||
| TFI | BH-800 | F-500 | F-800 | F-1000 | F-1300 | F-1600 | |
| TSC | WF-400 | WF-450 | WF-700 | WFU-750 | WF-1000 | WF-1300 | WF-1600 |
| WF-2000 | WF-2200 | ||||||
| Brewster | B-1000-T | B-1100-T | B-1300-T | B-1600-T |
